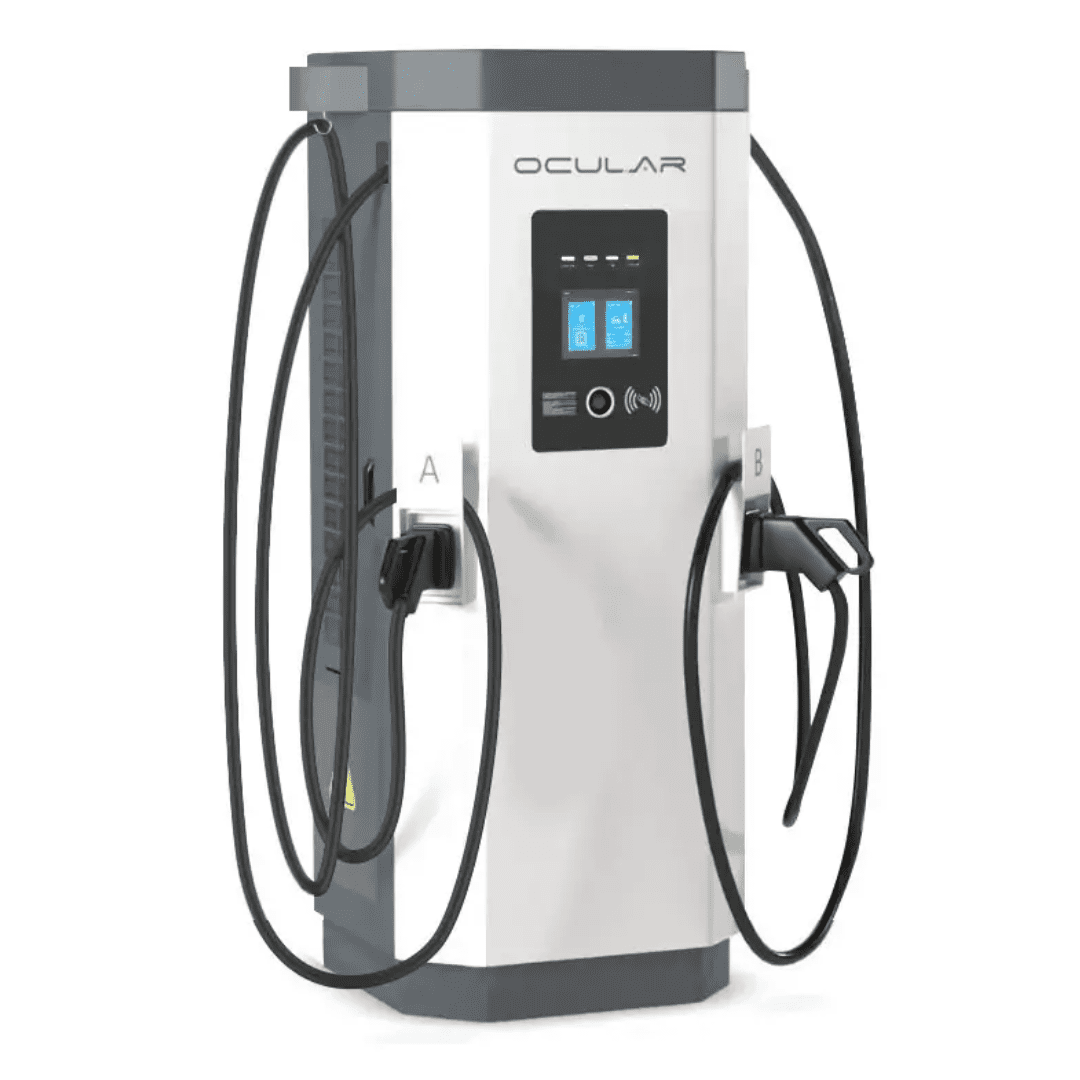

Name: Ocular Atlas DC Charger | 180kW | Dual Charger CCS2
Brand: Ocular
SKU: IOC180JY2-EE
Availability: InStock

Ocular Atlas DC Charger | 180kW | Dual Charger CCS2

$72,145.00 inc. GST

The Ocular Dual DC Charger is designed to supercharge electric vehicles conveniently with its robust metal casing and functional 8inch LED display. The Ocular system is equipped to also power vehicles with high voltage battery systems. Compatible with all major EV Brands in Australia.
Great for the office, commercial applications or roadside
Charging Speed – 150kW, 180kW
Can charge 2x EV’s at once
Compatible with all-electric vehicles with DC Capabilities

We will be in contact with the shipping costs after your order is placed.

Specifications:

Connectors: CCS2 x 2 – (Option for CHAdeMO and CCS1)
DC Power Output: (@ 1000V DC) – 60kW to 120kW
250Amp CCS2 Cable
30kW Power Modules for easy servicing
Supply input: 260V-530V AC
Supply frequency: 50-60 Hz
IP55
Warranty: 2 Years
Cable Length: 5m
Forced Air Cooling
RFID, OCPP APP enabled
Credit Card upgrade available
Efficiency >95%
Power Factor: 0.99
Display: 8 inch Touchscreen
Operating Temperature: -35C to 55C
Network Connection: 4G and Gigabit Ethernet
OCPP 1.6J, 2.0
Weight: 450 kg
Dimensions: 1816(H) x 1007(W) x 750(D) mm
Certifications: CE, RCM
Electrical Protection: Over current, short circuit, under voltage, ground fault, lightning surge, over temperature

Keep this in mind when installing:
For your safety, the installation must only be carried out by a licensed and qualified electrician familiar with Australian industry standards and is fully responsible for the installation

Please note charging speed is also dependent on the vehicle- The unit delivers 250Amp maximum x Voltage of the vehicle. If the vehicle can charge at a voltage above 600V it will be 150kW. If 400V it will charge at 100kW.
