Description
Safe – Power Balancing

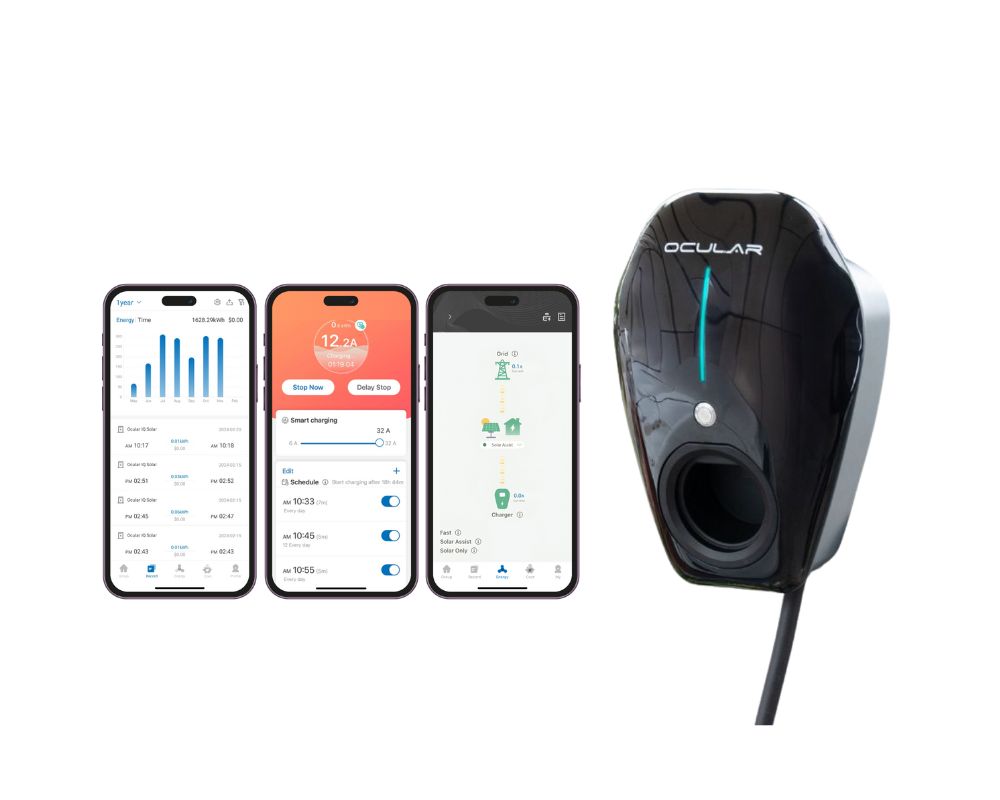

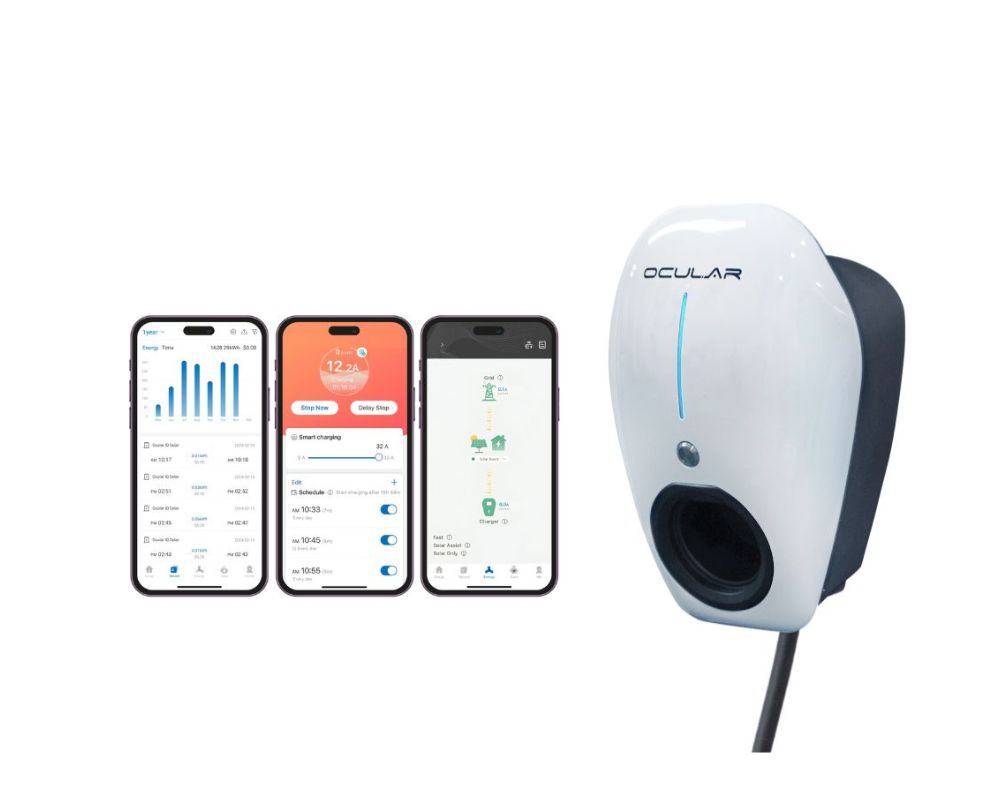

The Ocular IQ Home has energy balancing for energy restricted homes especially in the hot Australian summer. The Ocular IQ Home senses energy limitations in your home and adjust your charging speed to avoid overloading your electrical supply.
Utilising CT clamps the Ocular IQ Home senses a home’s available electricity. It can read the incoming feed to the building, take into account the building energy usage and calculate a final amount of power that is then distributed to the charger.
The IQ Home reads the power feed every second and reduces the power output when other home appliances, such as a water heater, air condition systems are turned on. Once the water heater is turned off, the charger will automatically read the available power and increase the power output to the maximum available level. This gives you the maximum charging speed without tripping your homes power.
Tech Specifications
- OCPP 1.6J, 2.01 Integration
- Wifi / Ethernet Modbus
- 22 KW, 32Amp, Three Phase Configurable Power
- 5m Tethered Cable
- Wall or pole mounted for convenience.
- Integrated Metering
- Indoor and Outdoor Rated
- 2 Year Warranty
- Compatible with all-electric vehicles and models including Audi, BMW, BYD, EQC, Holden, Honda, Hyundai, Jaguar, KIA, Mazda, Mercedes Benz, Mini, MG, Mitsubishi, Nissan, Polestar, Porsche, Renault, Rivian, Tesla, Toyota, Volkswagen, Volvo, Subaru
- Robust, space-saving housing
- Current Transformer (CT) clamps included to measure excess solar output.- Long 20m cable to reach from your charger location to the distribution board.- 100A maximum rated current and 16mm maximum cable size fits most residential installations.- For the 3 Phase charger, 3 clamps are included, and on single phase, only one clamp is included.
What happens when I have a stationary home battery?
For the most part, any excess solar produced by the system will be absorbed by the battery. The Ocular IQ Home modes work by using a CT Clamps to understand what you are exporting out to the grid. You may find that the home battery is absorbing most of your excess solar generated first and so what’s going out to the grid is minimal. Despite this, it’s fine to still install a charger, but you may find the solar assist mode is the best mode as it draws a small amount from the grid/battery when no excess solar is being produced. If there is excess solar available, it can then utilise the available excess solar that the battery is not taking.
