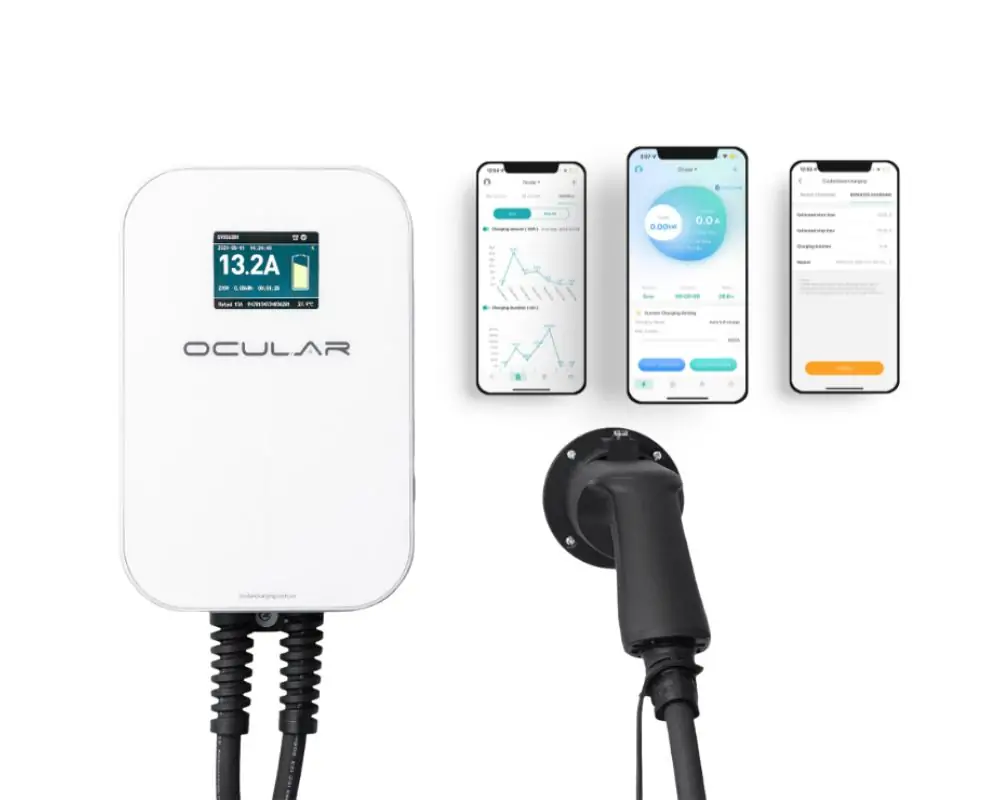

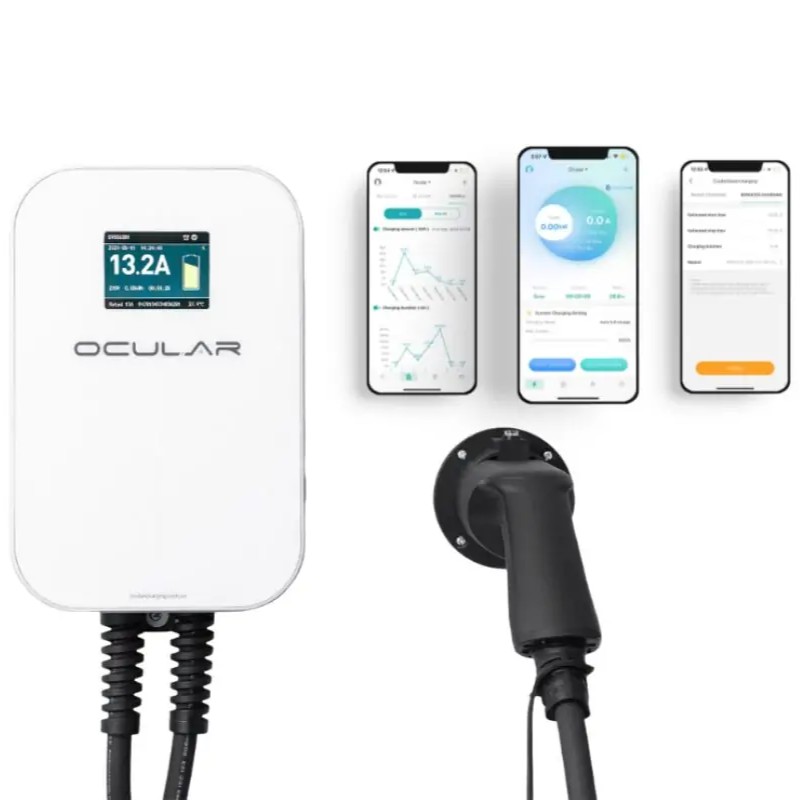

The Ocular LTE Plus 22 kW Three Phase Charger is the perfect EV charger for any 3-phase application and is compatible with all Type 2 EVs.
The Ocular LTE Plus Charger comes with an easy-to-use Bluetooth app (EVSE Master) which allows you to control and monitor your charger in real time and features a colourful LCD display displaying all the charging information you will ever need
The housing is robust and waterproof allowing for it to be wall mounted with ease.
Compatible with all Type 2 EVs including Audi, BMW, BYD, Holden, Honda, Hyundai, Jaguar, KIA, Mazda, Mercedes Benz, Mini, MG, Mitsubishi, Nissan, Polestar, Porsche, Renault, Rivian, Tesla, Toyota, Volkswagen, Volvo, and many more.
Additional wall chargers available contact for details.
Specifications:
• Input/Output Voltage: AC 230V
• Adjustable Current Output: 6-32 A
• Type 2 Charging Interface
• Maximum Power Output: 22 kW
• Built in Electrical and Environmental Protection
• Standby Power Consumption: <8 W
• Natural Air Cooling
• 6 meter Type 2 Cable
• Dimensions: W 295 mm x H 195mm x D 65 mm
• Weight: 6 kg
• Includes Wall-mounting bracket
NOTE: This does not include installation. Installation needs to be done by a qualified technician
| Weight | 7.7 kg |
|---|---|
| Dimensions | 295 × 195 × 65 mm |
| Rated Power Output | 22kW |
