Description
Ocular IQ OCPP provides a high-quality and cost-effective EV charging point designed to offer full Mode 3 fast charging to any EV in Australia. With OCPP 1.6J integration, the charger can be connected to any charging management system for easy operation, monitoring, and maintenance.
- Wall or post mounted
- Inbuilt Multi level load balancing capabilities with cluster connectivity
- Advanced 7’ LCD Display for live charging display
- Commercial metallic casing designed and tested to Australian conditions.
- Advanced Commercial Solar Integration – ( Requires an additional controller )
- Easy installation with a wide-angle door opening and modular components shorten the field time and maintenance.
Technical Specifications
- Integrated RCD Type B for reduced installation costs

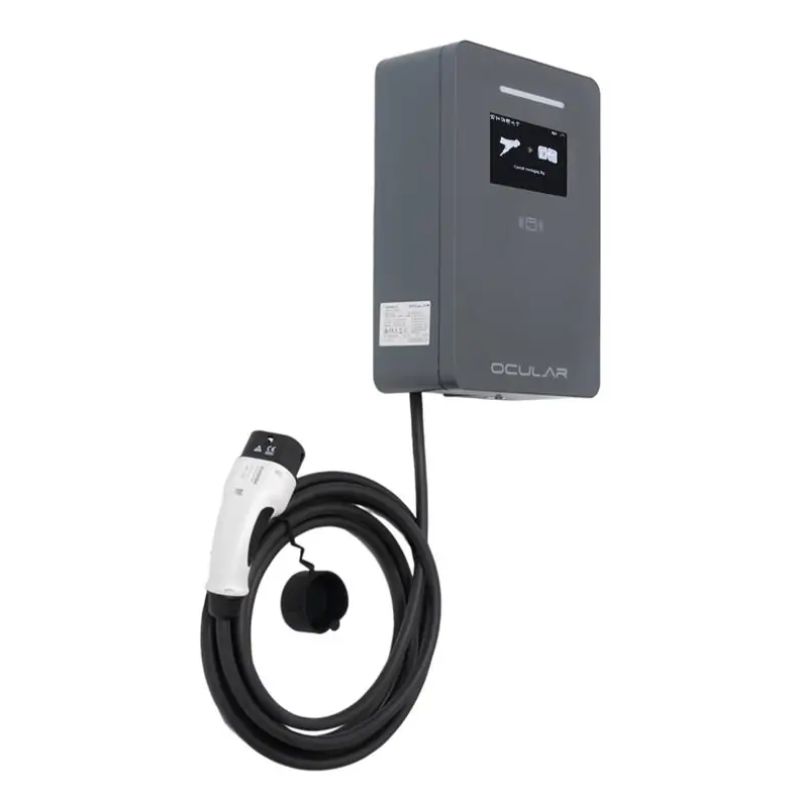

- 5m Hardwired EV cable (Optional)
- Charging speeds – 7kW
- Full OCPP 1.6J, OCPP 2.0 including smart profiles
- LED light indicating state of charger: charging, faulty, or available
- Over current, short circuit, over voltage, under voltage, ground fault, lightning surge, over temperature
- IEC 62196 dual Type-2 sockets
- IEC 61851-1 Mode 3 fast charging
- Built-in overload and fault current protection
- Built-in LED charging status indicator
- MID certified energy meter
- Built-in RCCB Type-B IEC certified and compliant with EV standards
- IP54
- CE Compliant
- RFID card reader. ISO/IEC 156963 and 14443
- IK10 charging station conforming to IEC 61851-22
- Dimensions: 270 x 400 x 130 mm
- Operating Temp: (-30 C to +55 C) in operation, (-40 C to +80 C) in storage
- Ethernet, (2.4G)
- 5G Wi-Fi
- 4G Module (optional)
- Full OCPP 1.6J, 2.0
•OCPP profiles 1: Firmware Management and Remote Trigger
•OCPP profiles 2: Smart Charging
•OCPP profiles 3: Local Auth List Management and Reservation - RFID Access or smartphone via OCPP

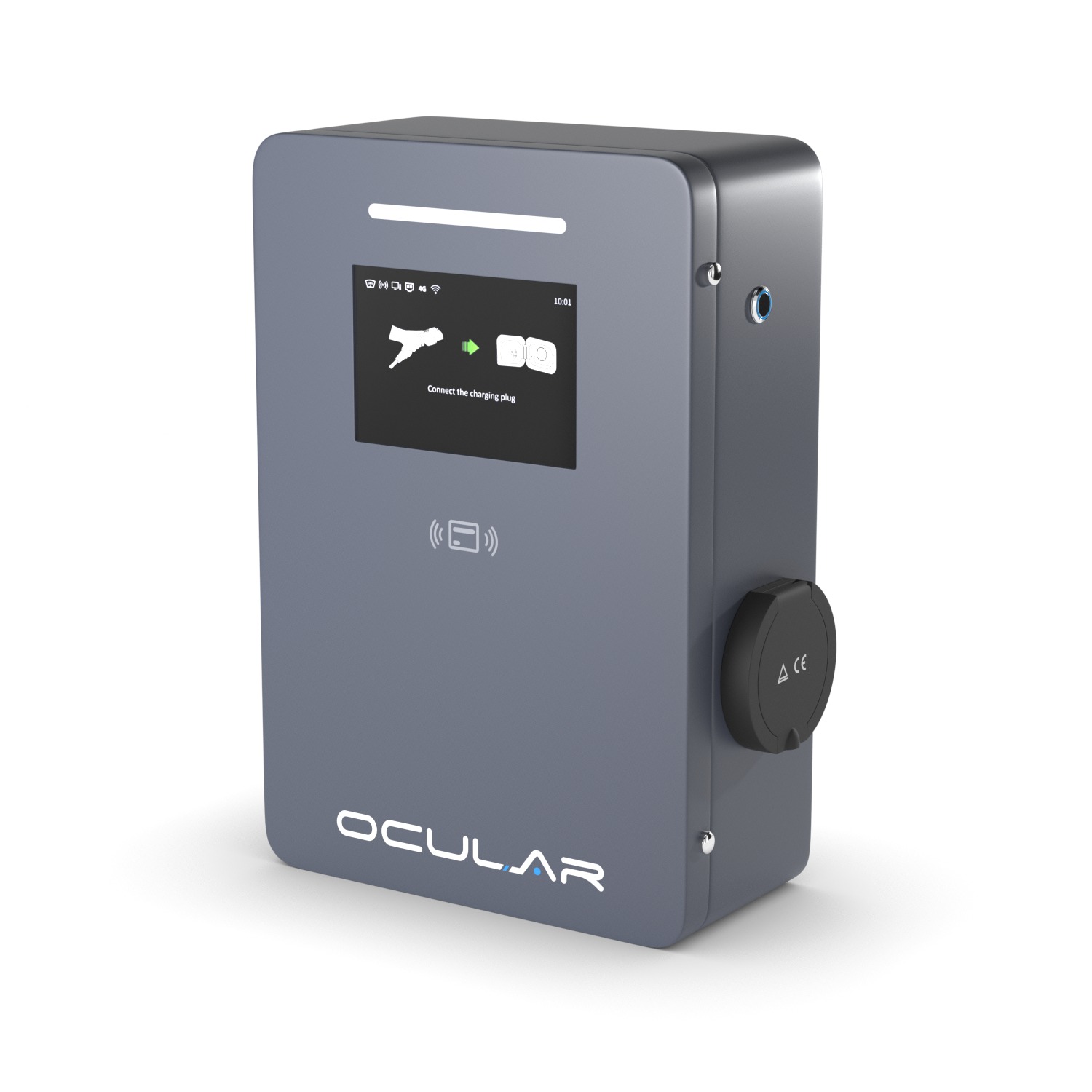

* Cables sold separately for Socket chargers
