Description
Details:
- CCS EV charging station with CCS Combo 2

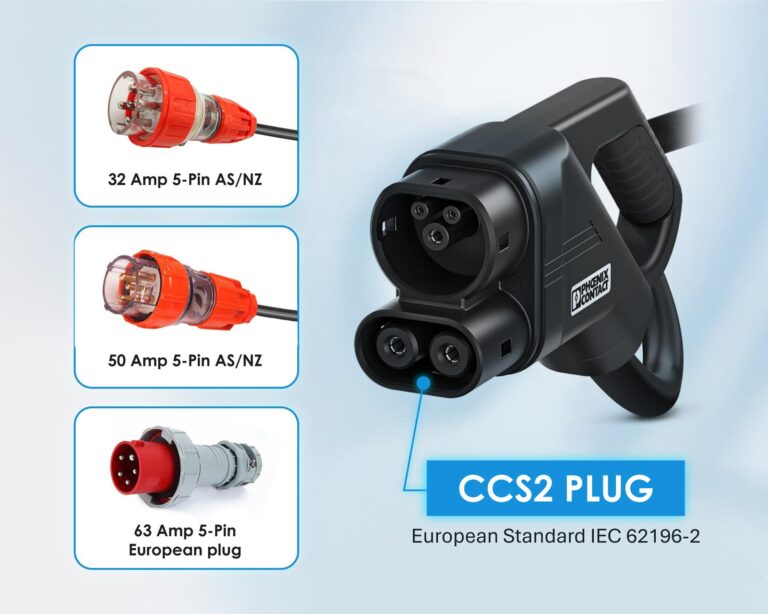

- Portable- Plugs into 3-phase wall outlet; 32 Amp (20kW), 50 Amp (30kW), and 63 Amp (40kW)
- Compatible with every EV
- LCD monitor
- 5m CCS2 Cable
- 2 Year Warranty
- Meets Australian and European standards
- Robust construction and silver-plated contacts assure a reliable connection.
- LED User-friendly interface
- Soft-switching technology, efficiency up to 95%

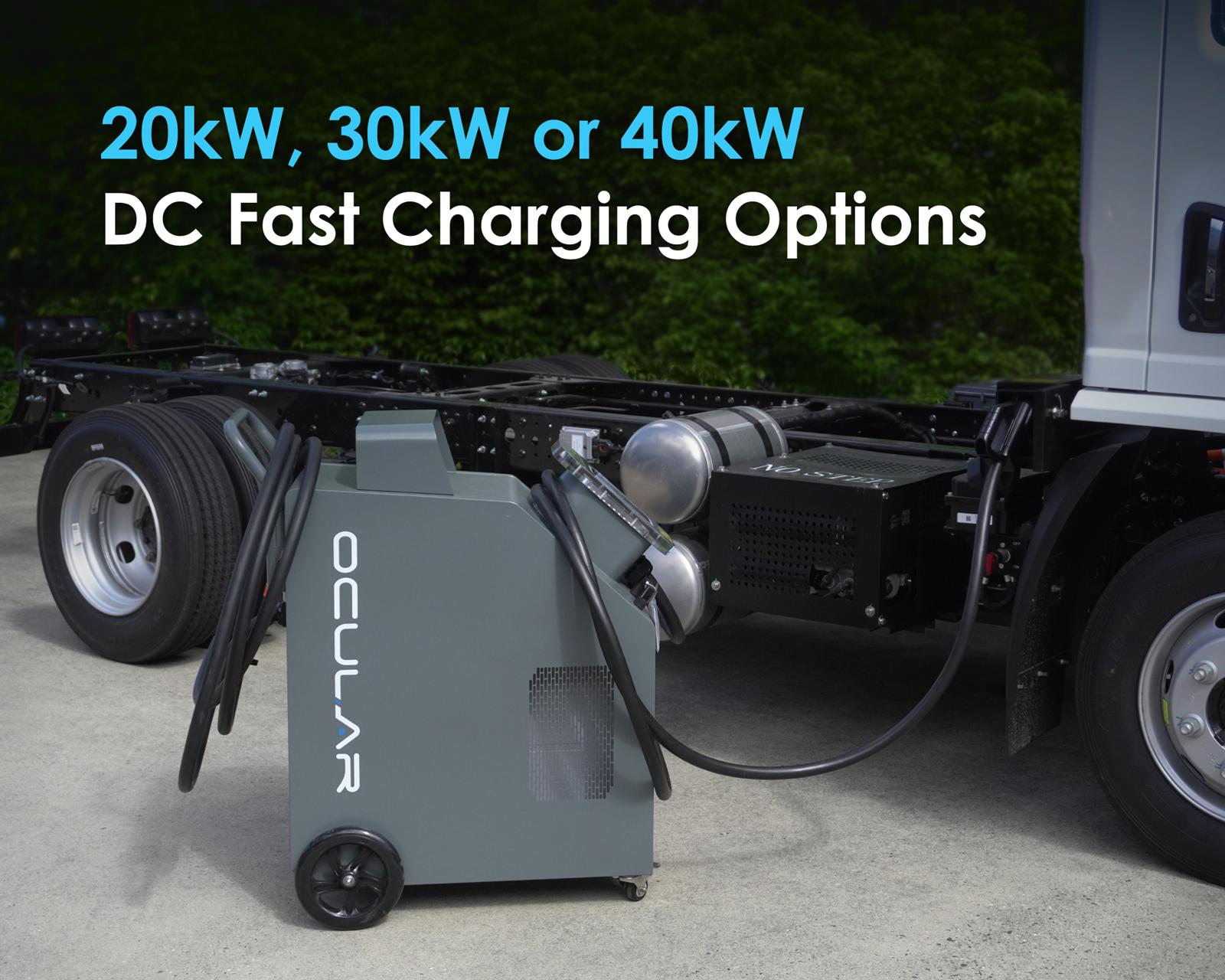

- 20kW, 30kWm and 40kW models
Technical Specifications:
Input Requirements:
- AC Supply System Three-Phase, 5 Wire AC system
- Nominal Input Voltage AC380V±15%
- Input Frequency 45-65Hz
Environmental Requirements:
- Ambient Temperature Range -30 to 55°C
- Ambient Humidity 5 to 95%
- Storage Temperature -30 to 80°C
Mechanical Requirements:
- IP 55
- Cooling Air-cooled
Output Requirements:
- Number of Outputs 1
- Output DC 200-750V
User Interface & Display Requirements:
- Display & Touch-Screen Size 7″ Touch Screen
- User Authentication Mobile Application or User Interface / QR Code/RFID Card /Password Login
- Metering Information Consumption Units
Communication Requirements:
- Communication between EVSE and Central server Portable: /
- Interface between Charger and CMS Ethernet/4G/WIFI (Optional)
Protection & Safety Requirements:
- Executive Standard CE, IEC/EN 61851-1, IEC/EN 61851-23, IEC/EN 61851-21-2, RCM
- Safety Parameters Over Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc.
