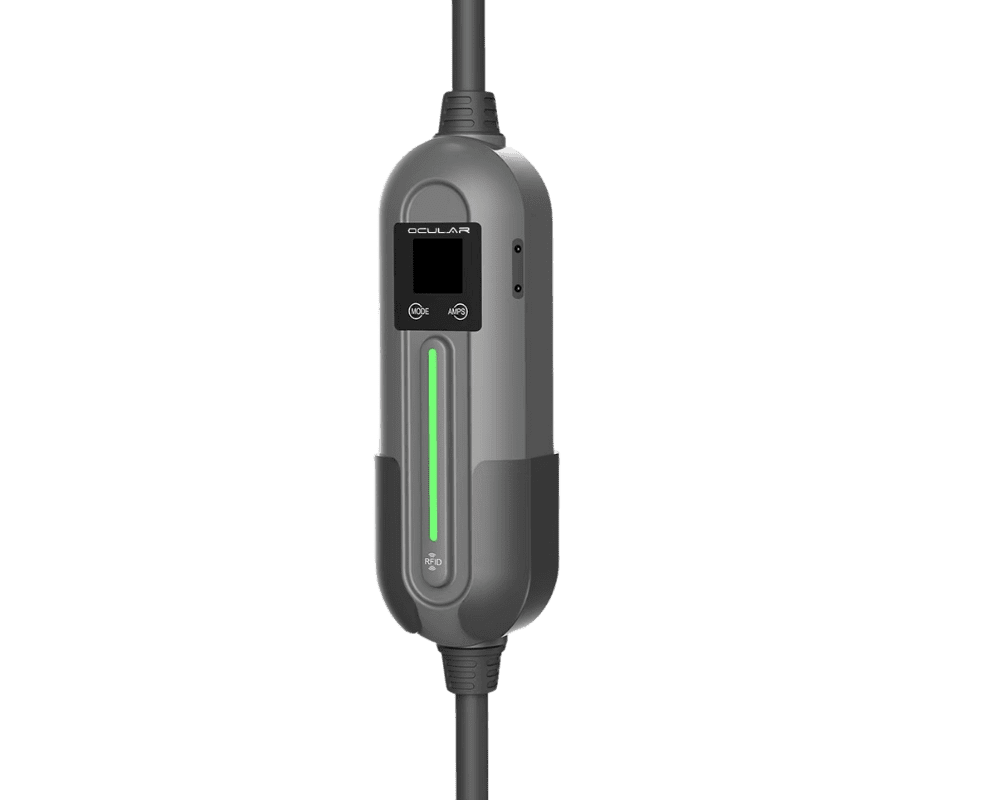

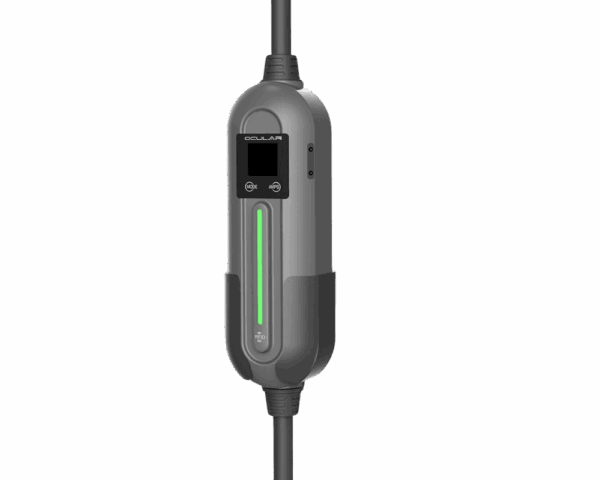

The Ocular IQ Portable OCPP is the perfect solution for providing home charging to your electric vehicle fleet. With the built in 4G modem and OCPP compatibility, you can monitor the fleet’s home charging behaviour and easily manage reimbursement for energy consumed at the home.
The unit is completely portable and has zero installation costs, meaning that it can be easily moved location as fleets need change.
Wall connector plug needed: Standard 10 Amp plug
Technical Specifications
Display: 1.54 Inch LCD Display, LED indication lights
Charger Control Method: Mobile App, physical button, plug and charge, RFID, OCPP
Communication Connection: Wifi, Bluetooth, 4G
Dimension (H x W x D, mm): 268 * 93 * 70 mm
Net Weight: 7.5kg
Power Output: 1.8kW or 7kW or 22kW option
EV Charging Connector: 5m Type-2 Cable
Cable Length to Wall Plug: 1.5m Type-2 Cable
Input and Output Voltage: 230V ± 20%
Frequency (Hz): 50/60Hz
Internal RCD: 30mA Type A & 6mA DC Leakage
RFID Reader: ISO 14443 Type A cards compatible
Electrical Protection: Over current, Short circuit, Over voltage, Under voltage, Ground fault, Lightning surge, Over temperature, Over load protection, UV Resistance
Operating Temperature: -30 to +50 in operation
Storage Temperature: -40 to +70 in storage
Working Humidity: 5% – 95% relative humidity, non-condensing
IP Performance: IP65
