Description

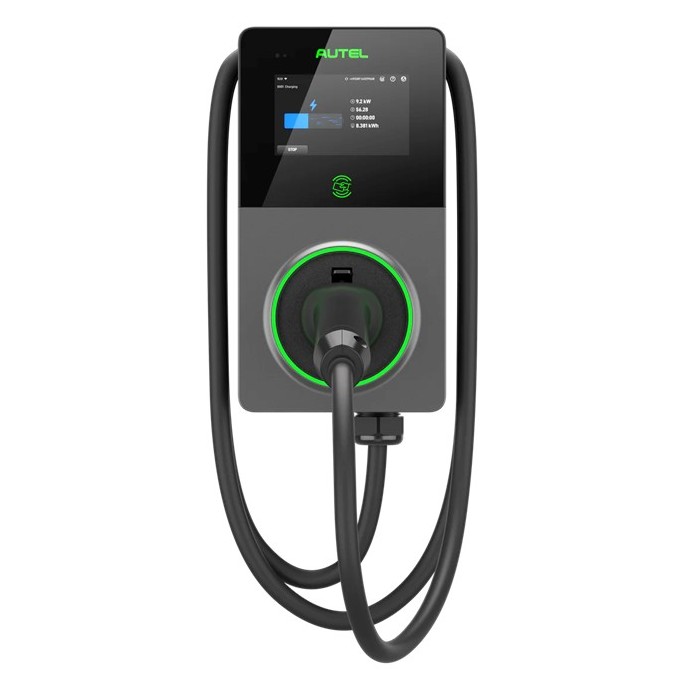

Premium Multiphase 4G Charging with Intuitive LCD Touch Screen
Features
5‑Year Warranty (at installation): 5‑year warranty guarantee from installation.
Dual OCPP Connectivity: Supports a duo OCPP connection, enabling more flexible backend connectivity for monitoring and platform requirements.
Connectivity Options by Variant for Cost Effective Project Requirement: Clear variant structure for WiFi only or 4G required site settings, fulfill your project need without spending too much.
Multiphase Flexibility (7/22 kW): Autel Single 4G variants are 7/22 kW multiphase, allowing 22 kW three‑phase hardware to be configured for single‑phase use where required, similar to Zappi multiphase chargers—ideal for mixed portfolios and future‑proofing site upgrades.
LCD Touch Screen (Premium User Experience): Includes an integrated LCD touch screen for clearer on‑charger status visibility and a more intuitive user interface, making it easier for drivers to confirm charging progress, follow prompts, and use the charger confidently on high‑traffic or customer‑facing sites.
Specifications
User Interface & Control
- User Interface: LCD Screen & LED Indicators
- Screen Size: 5-inch LCD touch screen
- Authentication Methods: Plug & charge, Autocharge & RFID
- Connectivity: 4G, Ethernet, Wi-Fi, Bluetooth & RS485
- Communication Protocols: OCPP 1.6J & OCPP 2.0.1
Mechanical & Environmental Specs
- Mounting: Wall-mounted or floor-mounted with pedestal
- Dimensions (H×W×D): 315 × 170 × 117 mm
- Weight: 6.3kg
- Enclosure Rating: IP65 (charger body), IP54 (socket & shutter versions), IK10
- Installation: Indoor or outdoor
- Operating Temperature: -30°C to +50°C
- Storage Temperature: -40°C to +70°C
- Operating Humidity: <95%, non-condensing
- Operating Altitude: ≤2000 m
- Ambient Light Sensor: Yes
Electrical Specifications
- Rated Output Power: Up to 7kW/22 kW
- Input Voltage: 230V ±15%, single-phase/ three‑phase, 50/60 Hz
- Rated Current: Up to 40A
- Circuit Breaker Options: 3P + N + PE
- Network Types: TN, TT, IT
- Input Connection: Hardwired
- Connector Options: 5m tethered cable
