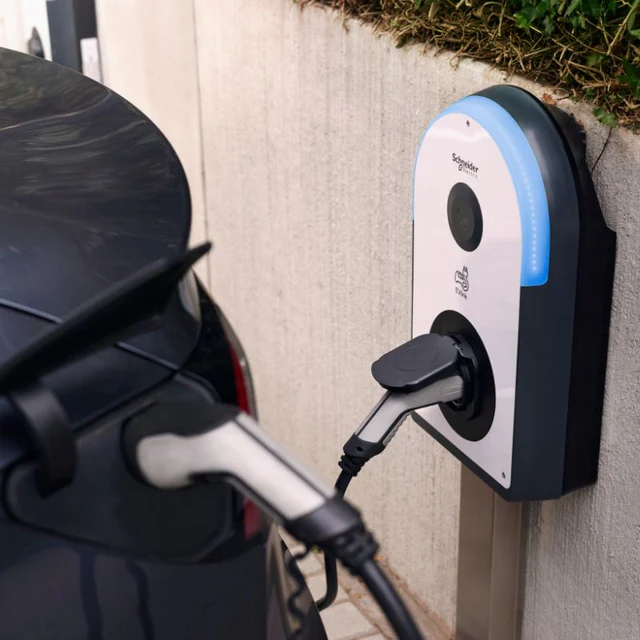

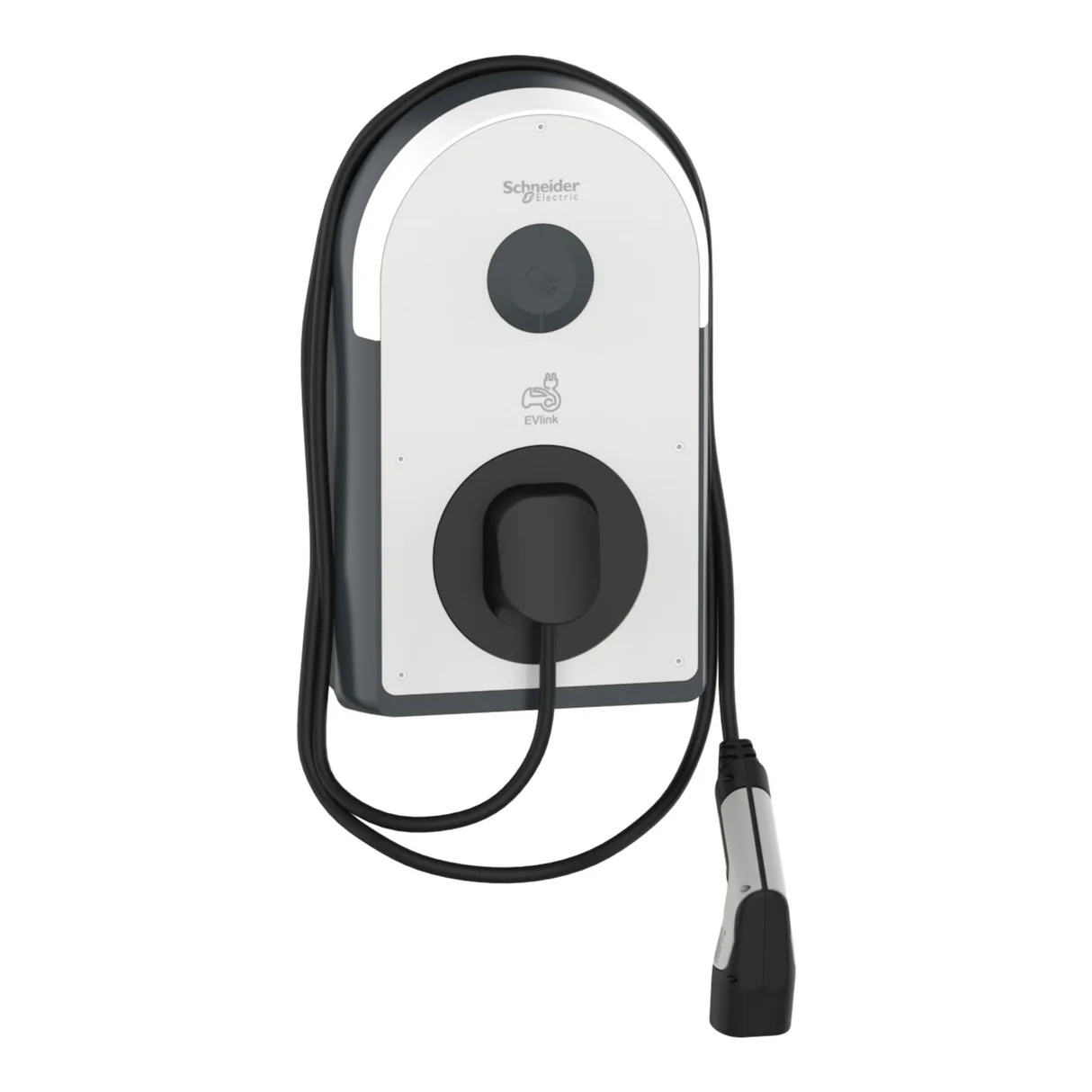

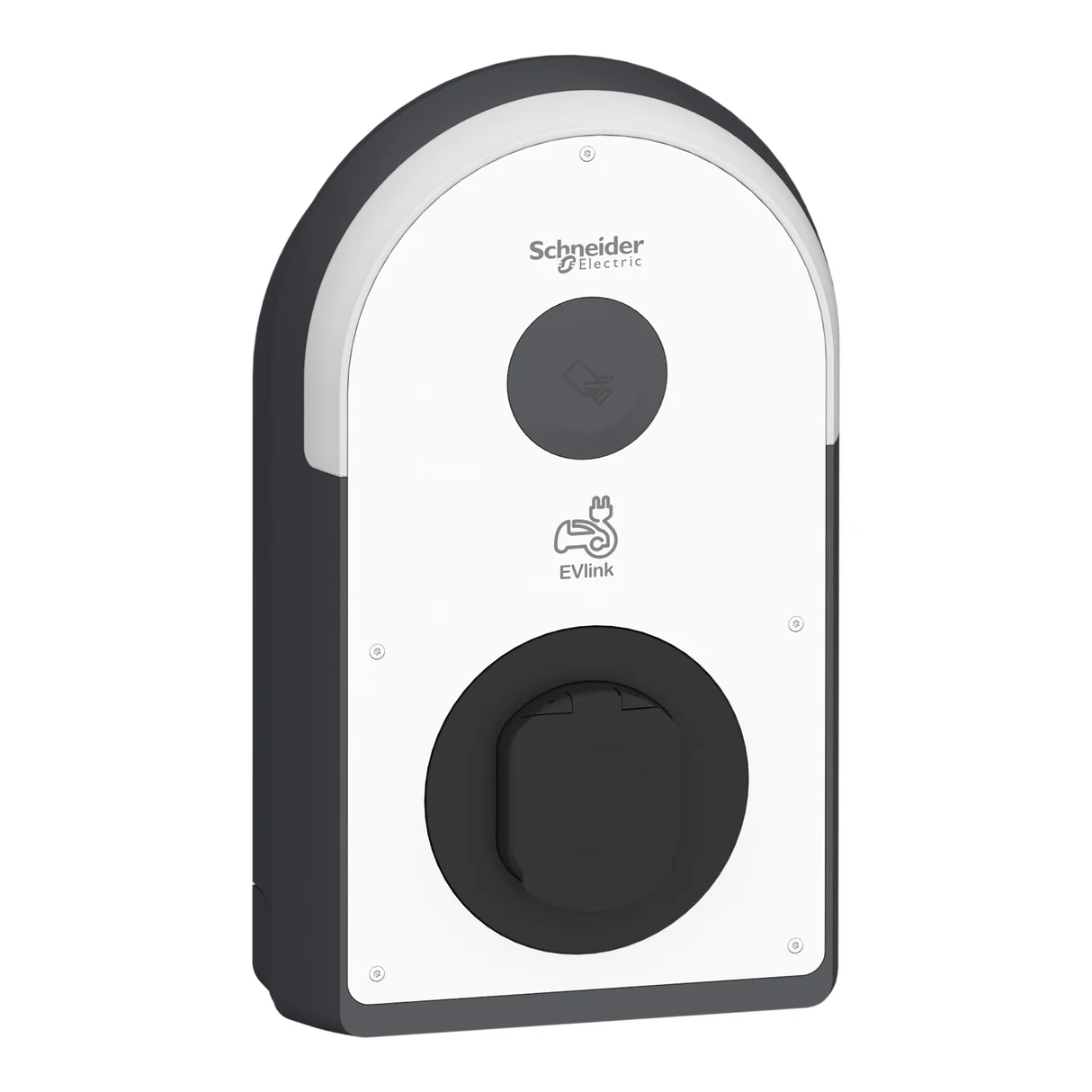

Charge Smarter with Schneider EVlink Pro AC 7.4 kW
Features:
SOCCI-Compliant Security: Ensures the charging station meets Secure Operational Critical Communications Infrastructure standards, providing robust cybersecurity and secure data exchange for critical energy applications.
Smart Connectivity: Ethernet, Bluetooth, and OCPP 1.6 support for remote management and integration.
Enhanced Safety: Built-in RDC-DD (6 mA) and robust protection for secure charging.
Durable Design: IP55 weatherproof and IK10 impact-resistant housing for indoor/outdoor use.
Access Control: RFID authentication for secure user access.
Specifications:
Mechanical & Environmental Specs
- Mounting Options: Wall-mounted / Floor-standing (pedestal or kit enclosure)
- Dimensions (H × W × D): 529 mm × 317 mm × 153 mm
- IP Degree of Protection: IP55
- IK Degree of Protection: IK10
- Operating Temperature: -30°C to +45°C
- Storage Temperature: -40°C to +80°C
- Relative Humidity: 5–95%
- Operating Altitude: Up to 2000 m without derating
Electrical Specs
- Output Power: 7.4 kW, Single Phase
- Rated Current: 32 A
- Rated Supply Voltage: 220–240 V AC, 50/60 Hz
- Socket Type: Type 2
- Protection Device: RDC-DD (Residual Direct Current Detection) – 6 mA
- Standards: EN/IEC 61851, EN/IEC 62196-1EN/IEC 62196-2:ed.1, EN61000-6-2:2019, EN 61000-6-3:2007, ISO 15118
User Interface & Control
- Communication Protocol: OCPP 1.6 (JSON smart charging)
- Communication Interfaces: Ethernet (2 × RJ45), Bluetooth, Optional 3G/4G modem, Modbus TCP
- Access Control: RFID Badge (ISO/IEC 14443 A/B, ISO/IEC 15693), NFC (Type 1, 2, 4, 5; 13.56 MHz), Free access
- Local Signalling: Green LED (Available), Blue LED (Charging), Red LED (Fault)
- Control Type: Remote control capability
