Description
High-Value Quality: Exceptional quality at the best value, supported by ABB’s reputation as a leader in charging solutions.
Future-proof Flexibility: Equipped with connectivity and smart functionality for optimised charging, seamlessly integrating into everyday life.
Safety and Protection: Built with safety as a core principle, meeting the highest standards through independent third-party certifications.

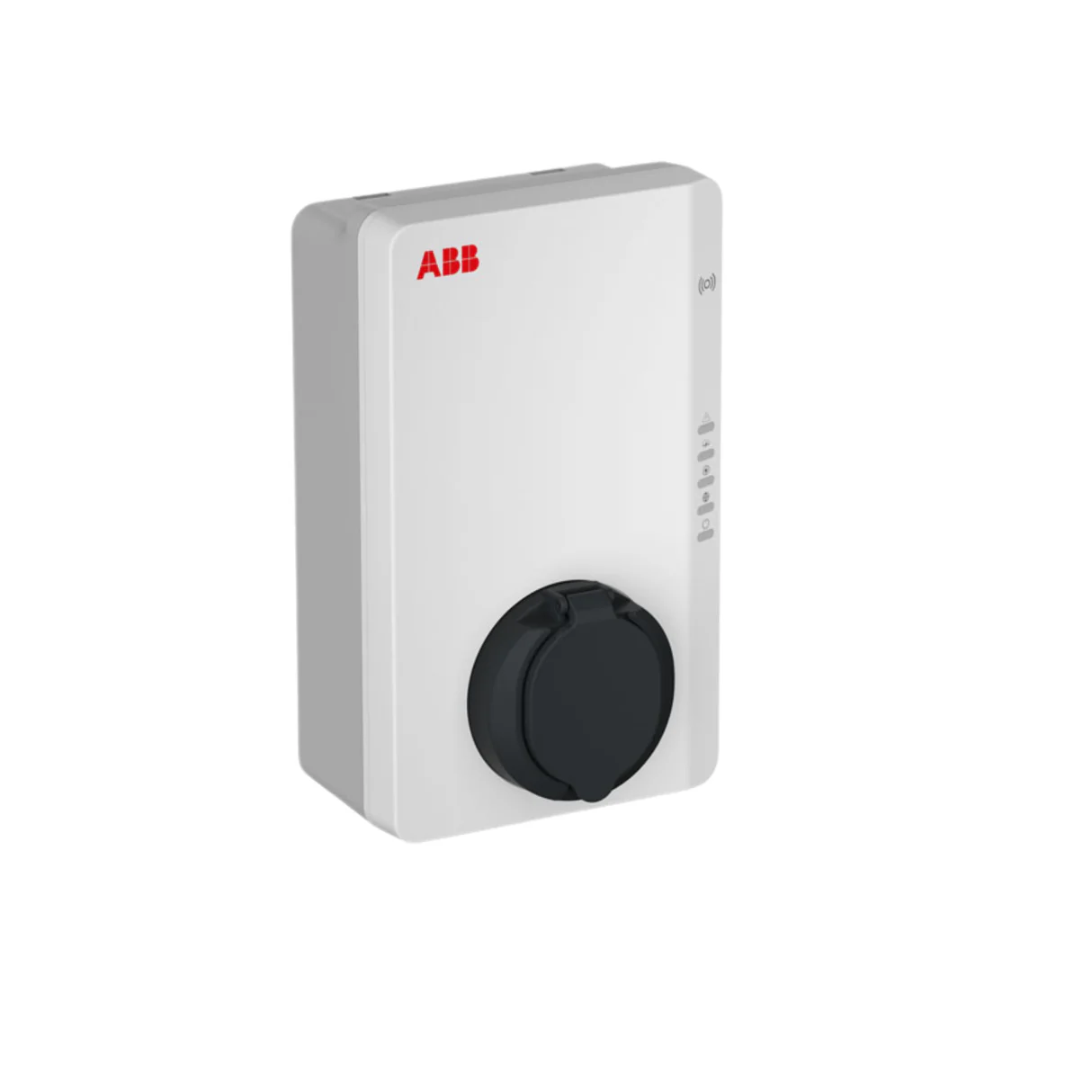

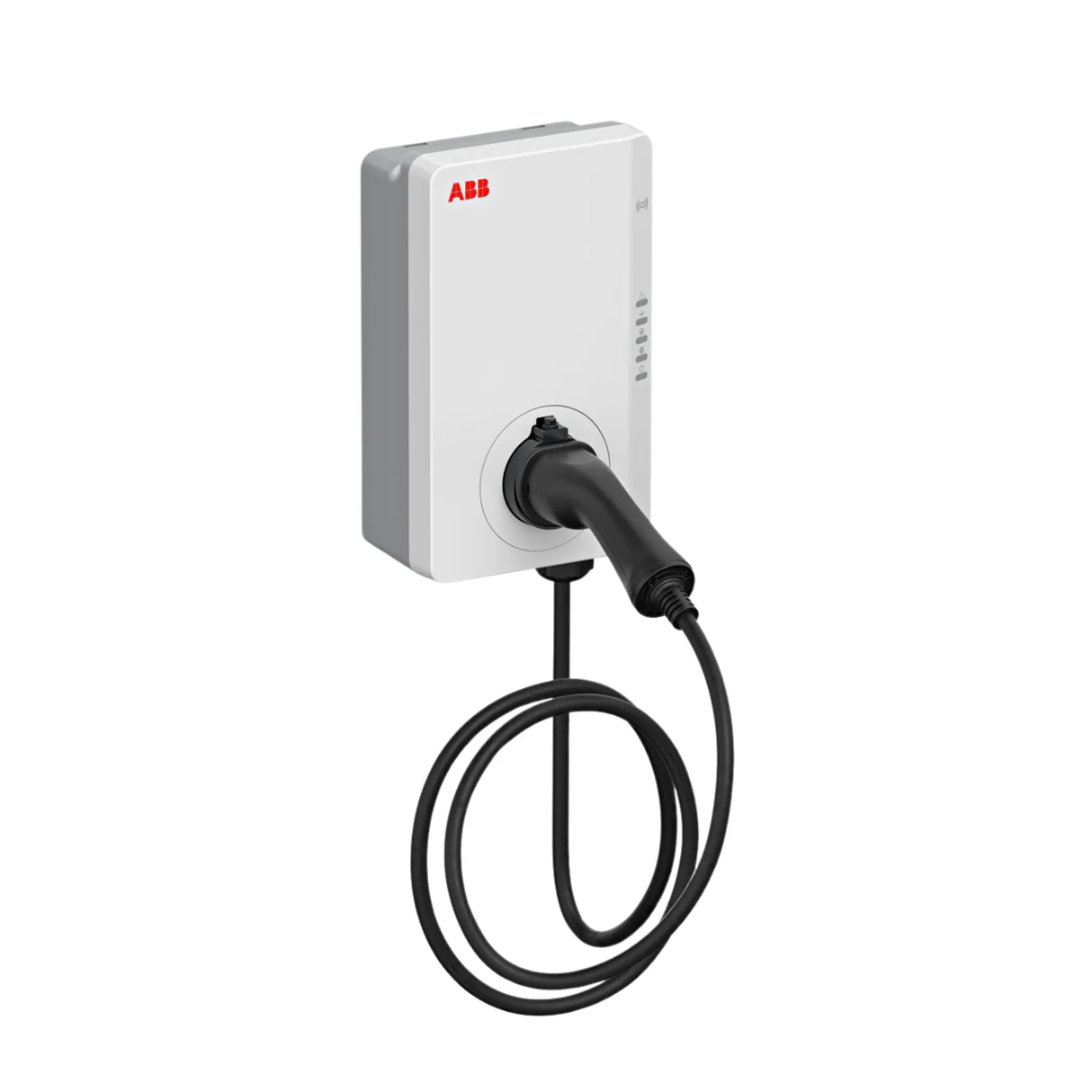

Product Type: AC Charger
Colour: White
Charging Mode: Mode 3
Rated Current: Up to 32A maximum
Rated Voltage: 230V, Single Phase | 400V, Three Phase
Rated Frequency: 50Hz / 60Hz
User authentication: RFID
Connectivity: Ethernet (Daisy-Chain)
Connector Type: Type 2 cable, Type 2 socket, Type 2 socket with shutter – IEC 62196-1, IEC 62196-2
Operating Temperature: -35°C to +50C
Storage Temperature: -40°C to +80C
Product Certifications: CE, MID, PTB, cTUVus, Energy Star (for part of US models), JATE, TELEC
Safety Standards: IEC/EN 61851-1, EN 50385, IEC 62955, UL 2594, UL 2231-1, UL 2231-2, UL 1998, NMXJ-667-ANCE, CSA C22.2. NO.280
EMC / RF Standards: EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, IEC 61851-21-2, EN 301 908-1, EN 301 908-2, EN 301 908-13, EN 300 328, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 301 489-52, EN 300 330, FCC PART 15B, FCC PART 15C
