Description

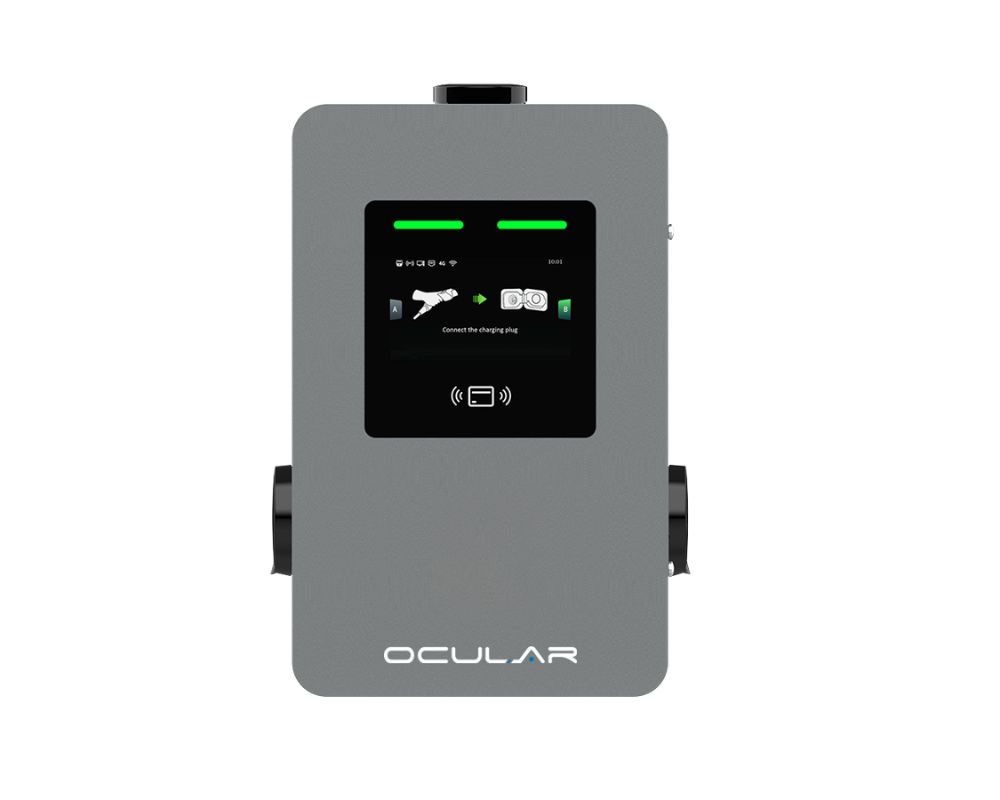

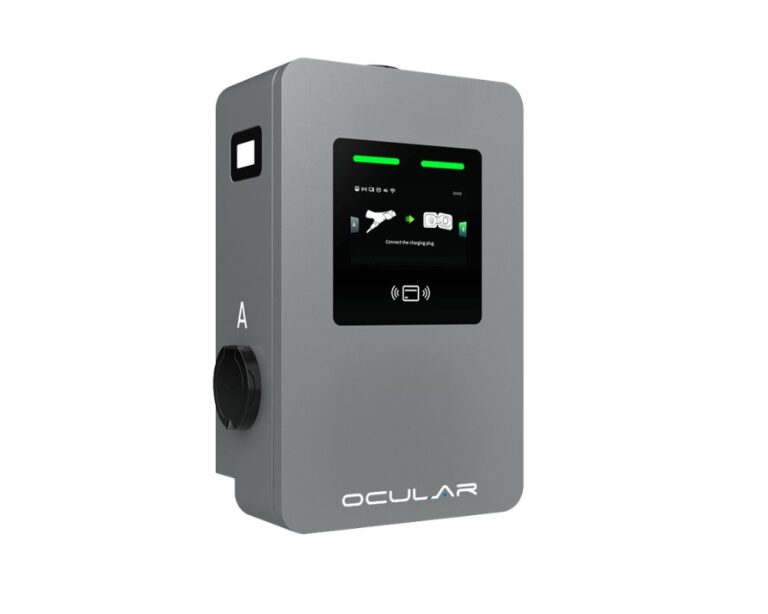

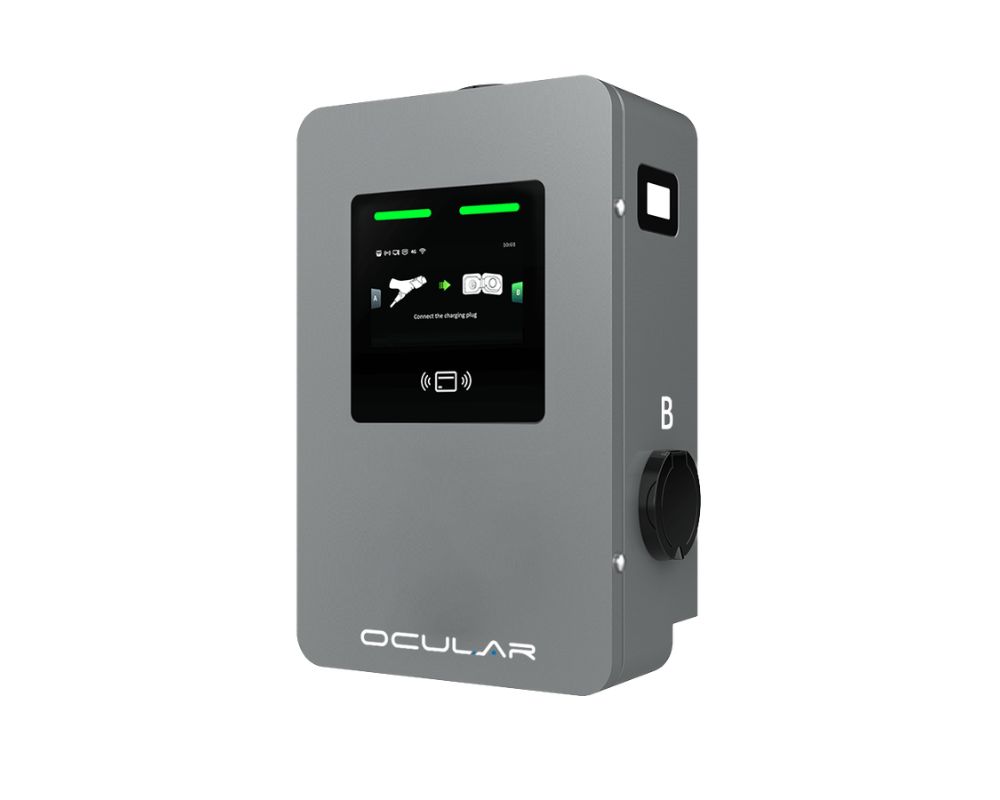

The Ocular Dual AC Commercial Wallbox is a high-quality EV charging solution designed to provide reliable Mode 3 AC charging (7kW single-phase or 22kW three-phase) for electric vehicles. With OCPP 1.6J and OCPP 2.0.1 compatibility, the charger can integrate with charging management systems for remote monitoring, control, and smart charging.
Features and Specifications:
- Warranty – 2 Years
- 7’ LCD touch display with LED charging status indicator
- 7kW (single-phase) or 22kW (three-phase) charging per port
- 230V ±20% single-phase or 400V ±20% three-phase input/output voltage
- 32A maximum current per phase per port
- Dual Type-2 socket connectors (IEC 62196-2)
- Robust powder-coated stainless steel commercial-grade housing
- Full OCPP 1.6J and OCPP 2.0.1 compatibility including smart charging profiles
- Smart load balancing compatible with Ocular Load Controller or OCPP profiles
- User authentication via RFID (ISO14443) or mobile app
- LED indicators showing charger status: charging, available, or fault
- Over current, short circuit, over voltage, under voltage, ground fault, lightning surge, and over-temperature protection
- Internal RCD protection – 30mA AC and 6mA DC leakage protection
- Dual MID certified energy meters for accurate billing and monitoring
- IP55 weather protection rating for indoor and outdoor installations
- IK10 impact protection rating
- CE and RCM compliant with IEC/EN 61851-1, IEC/EN 61851-21-2 and IEC 62196-2
- Dimensions: 550 x 320 x 177 mm
- Net weight: 18.5 kg
- Operating temperature: (-30°C to +50°C) in operation, (-40°C to +70°C) in storage
- Operating humidity: 5%–95% relative humidity (non-condensing)
- Ethernet connectivity
- Wi-Fi connectivity
- 4G module support (nano SIM optional)
- Communication protocol: Modbus TCP/IP
- Firmware management and remote trigger via OCPP
- Smart charging capability via OCPP profiles
- Local authentication list management and reservation via OCPP
- RFID access or smartphone control via OCPP platform
- Indoor and outdoor rated installation
- Wall mounted configuration
- Compatible with all-electric vehicles and models including Audi, BMW, BYD, Deepal, EQC, Geely, Holden, Honda, Hyundai, Jaguar, KIA, Mazda, Mercedes Benz, Mini, MG, Mitsubishi, Nissan, Polestar, Porsche, Renault, Rivian, Tesla, Toyota, Volkswagen, Volvo, Xpeng, Zeekr.
