Description

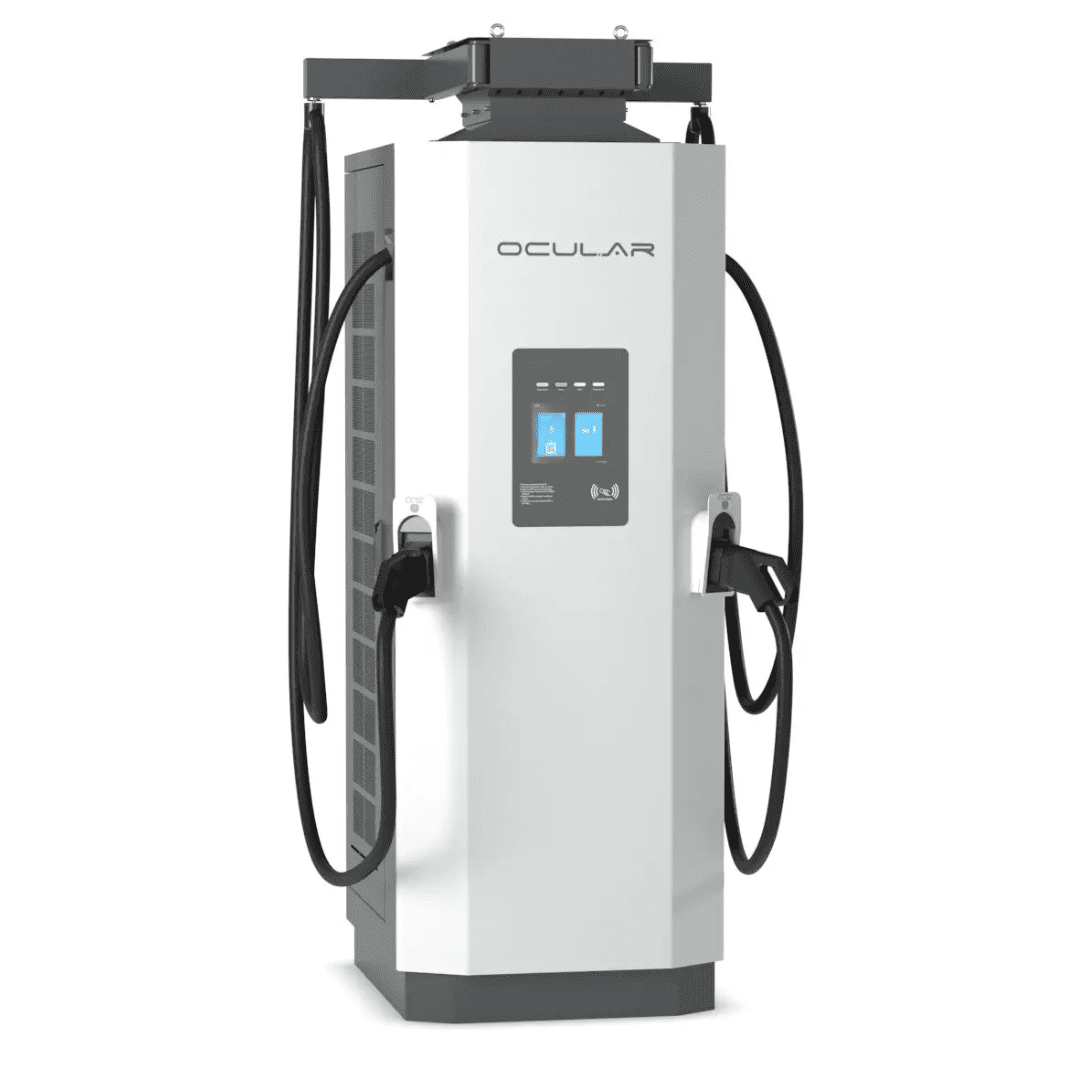

The Oculars compact size and touchscreen makes it perfect for public and fleet use. Importantly unlike other units the Ocular system is designed to charge 2 vehicles simultaneously allowing you to double your vehicle servicing.
The Ocular Orion comes standard with dual CCS 2 ports but also other configurations to order including Chademo and CCS1. The unit is compatible with all major brands in Australia.
Specifications:
- Connectors: CCS2 x 2 – (Option for CHAdeMO and CCS1)
- 250Amp Phoenix CCS2 Cable
- 30kW Power Modules for easy servicing
- Supply input: 260V-530V AC
- Supply frequency: 50-60 Hz
- IP55
- Warranty: 2 Years
- Cable Length: 5m
- Forced Air Cooling
- RFID, OCPP APP enabled
- Credit Card upgrade available
- Efficiency >95%
- Power Factor: 0.99
- Display: 8 inch Touchscreen
- Operating Temperature: -35C to 55C
- Network Connection: 4G and Gigabit Ethernet
- OCPP 1.6J, 2.0
- Weight: 590-755 kg
- Dimensions: 2338(H) x 1050(W) x 956(D) mm
- Certifications: CE, RCM
- Electrical Protection: Over current, short circuit, under voltage, ground fault, lightning surge, over temperature
Keep this in mind when installing:
For your safety, the installation must only be carried out by a licensed and qualified electrician familiar with Australian industry standards and is fully responsible for the installation
Please note charging speed is also dependent on the vehicle- The unit delivers 250Amp maximum x Voltage of the vehicle. If the vehicle can charge at a voltage above 600V it will be 150kW. If 400V it will charge at 100kW.
