Fluid‑Press | Hydraulic Pressure Relief Valve | FPM‑D‑40‑C(B) series |

Fluid‑Press | Hydraulic Pressure Relief Valve | FPM‑D‑40‑C(B) series |

$50.00 inc. GST

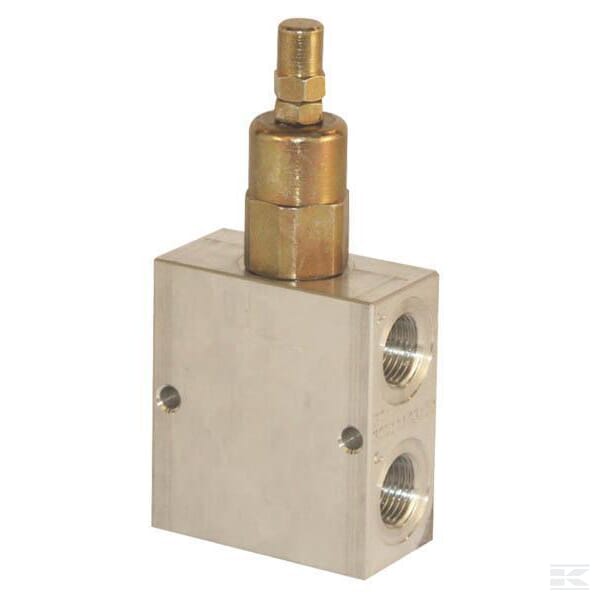

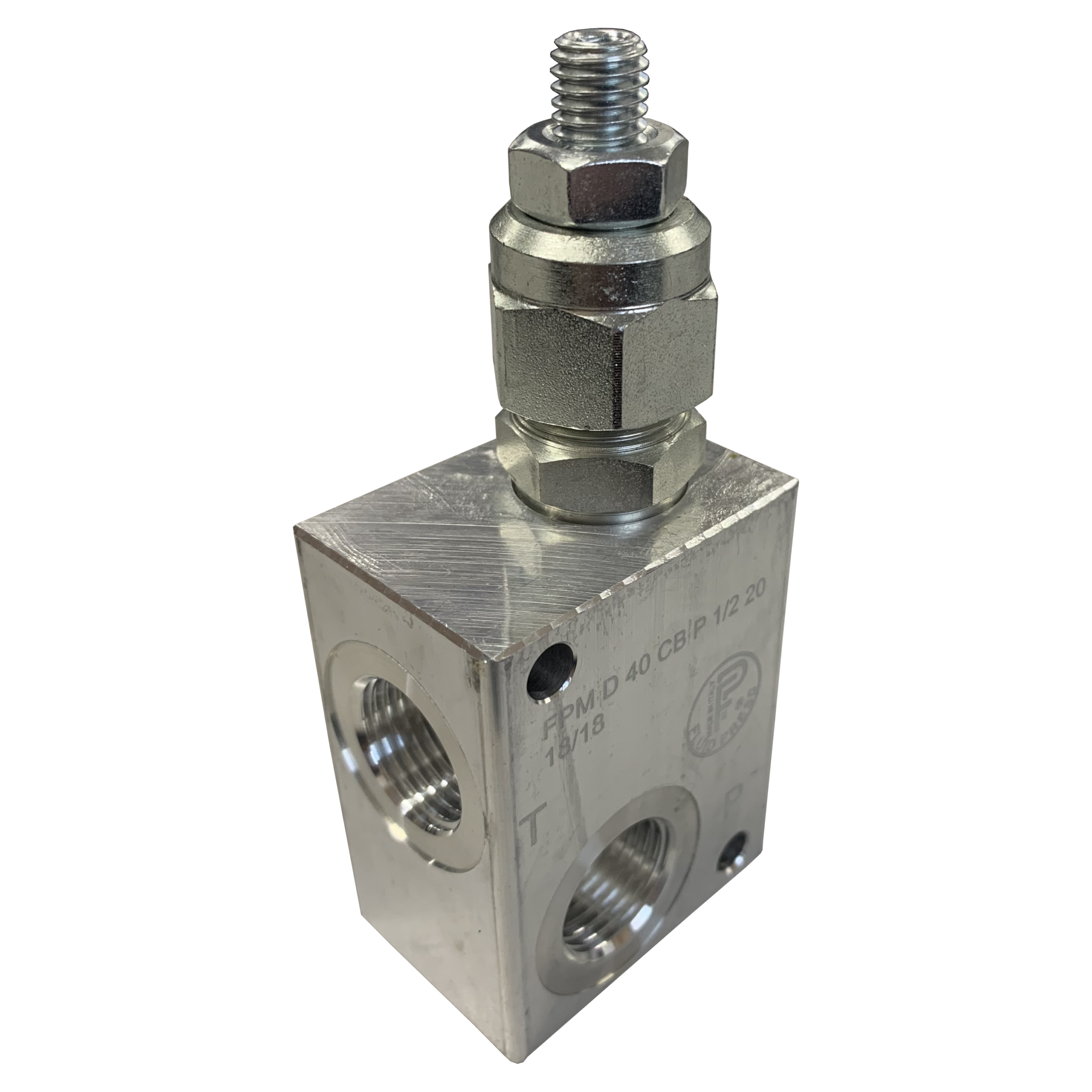

The Fluid‑Press FPM‑D‑40‑C(B) is a compact, high-performance direct-acting hydraulic pressure relief valve designed to protect hydraulic systems from overpressure. Featuring a guided poppet and precise adjustment mechanism, it ensures reliable pressure control in mobile, industrial, and general hydraulic applications.

This valve opens when system pressure exceeds the user-set threshold—redirecting excess fluid to the return (T) port—and automatically reseals when pressure normalizes, protecting pumps, hoses, and actuators.

15 in stock

SKU: SKU-FP Category:

Description

Specification Details
Flow Rate 40 L/min
Max Setting Pressure 350 bar
Spring Codes 05 (5–50 bar), 10 (30–100 bar), 20 (50–220 bar), 35 (80–350 bar); “20” (green) is standard
Adjustment Method Hex‑socket screw (P), hand knob (R), tamper‑proof cap (Z)
Materials Cartridge – zinc‑plated hardened steel; Body – high‑strength aluminium alloy (CB version)
Weights Cartridge: 0.165 kg; Valve body + cartridge: 0.410 kg
Installation Torque 40–45 Nm
Cavity Code 22201
Ports P/T – BSPP 3/8″ (CB version)

Additional information

Weight 0.410 kg
Dimensions 82 × 33 × 46 mm
