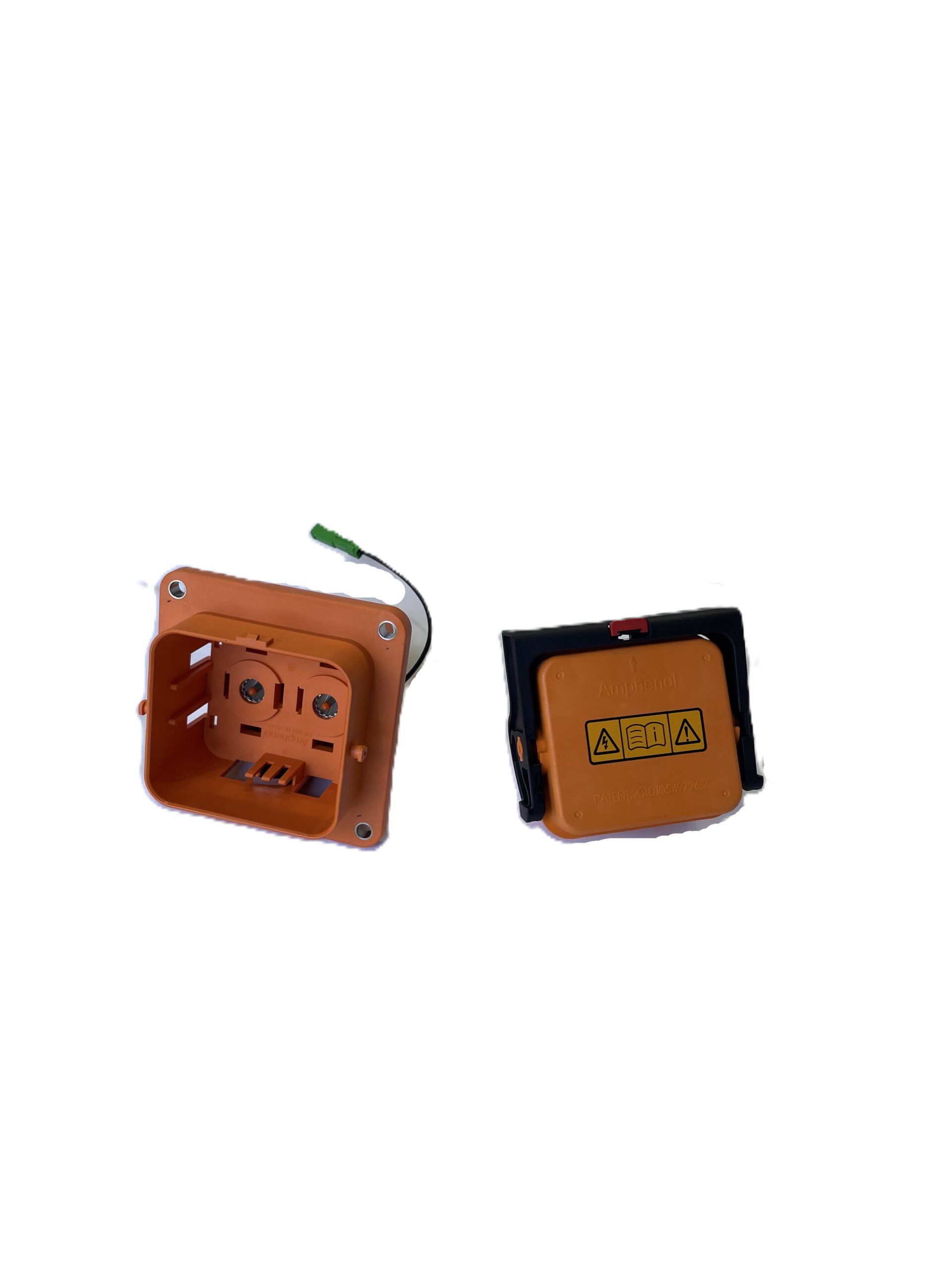

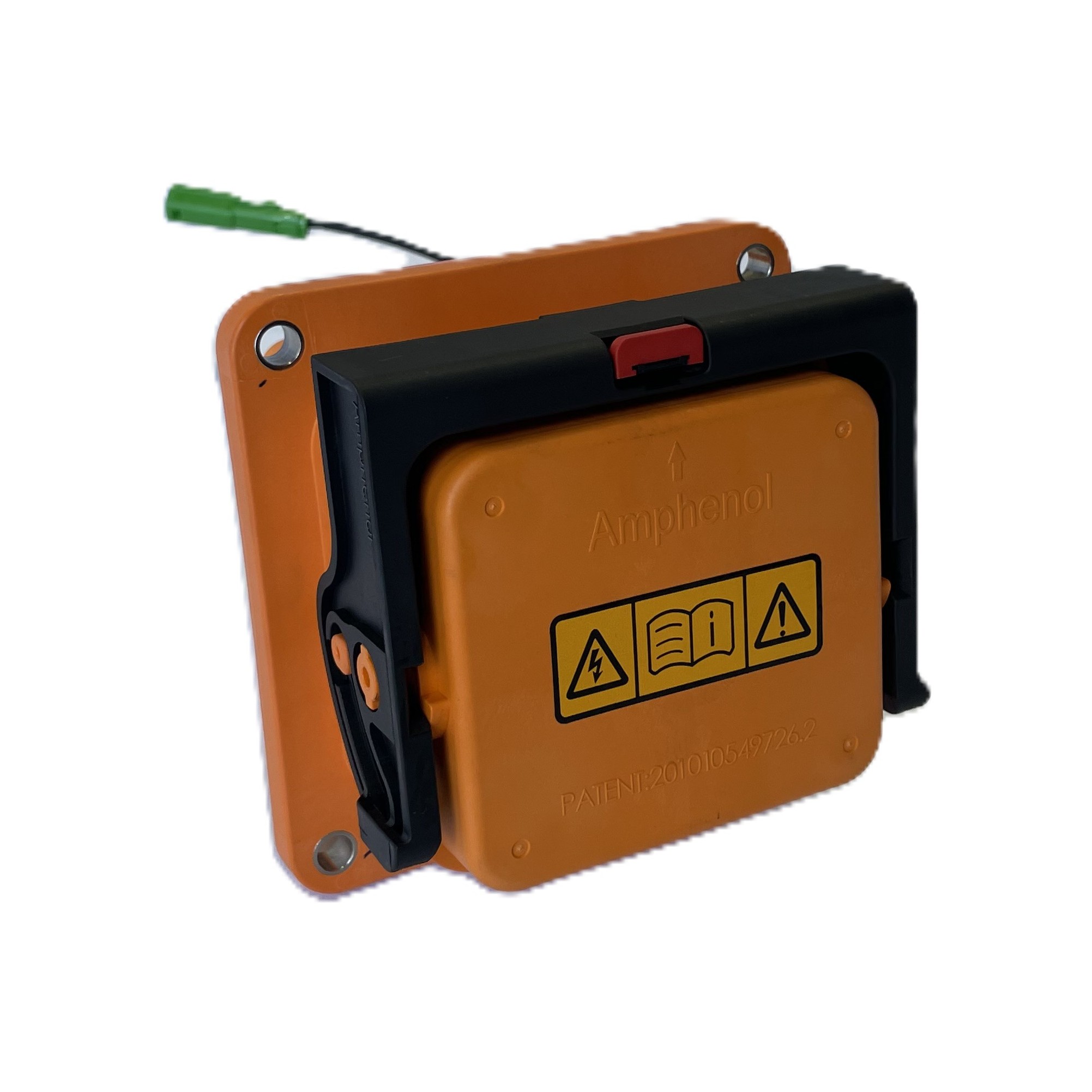

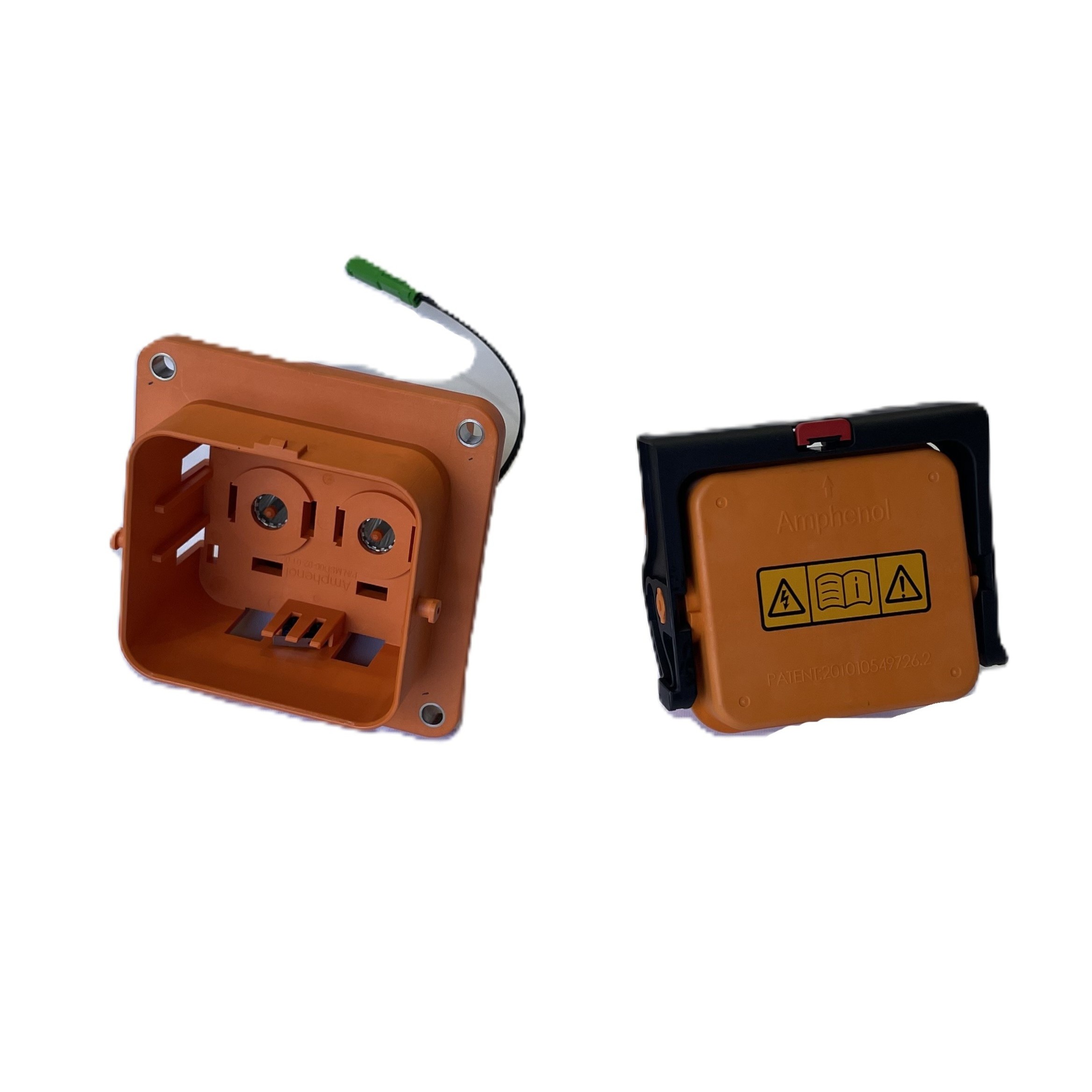

Amphenol MSD Fuse Receptacle (HV Interlock Fuse Holder)
Product Description
The Amphenol MSD Fuse Receptacle is a high-voltage safety interface designed for electric vehicle and high-energy battery systems. It provides a secure mounting point for an MSD (Manual Service Disconnect) fuse plug, enabling safe isolation of high-voltage circuits during servicing, maintenance, or emergency conditions.
Designed to meet stringent automotive and industrial safety standards, the receptacle integrates both high-current power contacts and a high-voltage interlock loop (HVIL) interface. Removal of the MSD plug mechanically and electrically interrupts the HV circuit while simultaneously opening the interlock loop, ensuring the system is safely de-energised before access.
The rugged, touch-safe design supports high vibration environments and harsh operating conditions, making it ideal for EV conversions, battery packs, energy storage systems, buses, trucks, and mobile power platforms.
Key Features
-
Accepts Amphenol MSD fuse plugs
-
Integrated HVIL for functional safety compliance
-
Touch-safe, finger-proof design
-
High-current capable power contacts
-
Robust housing for automotive and industrial environments
-
Panel- or enclosure-mountable
-
Designed for frequent service operations
Typical Applications
-
EV battery pack service disconnects
-
High-voltage junction boxes (HVJB)
-
Mobile energy storage systems
-
Electric buses, trucks, and off-road vehicles
-
