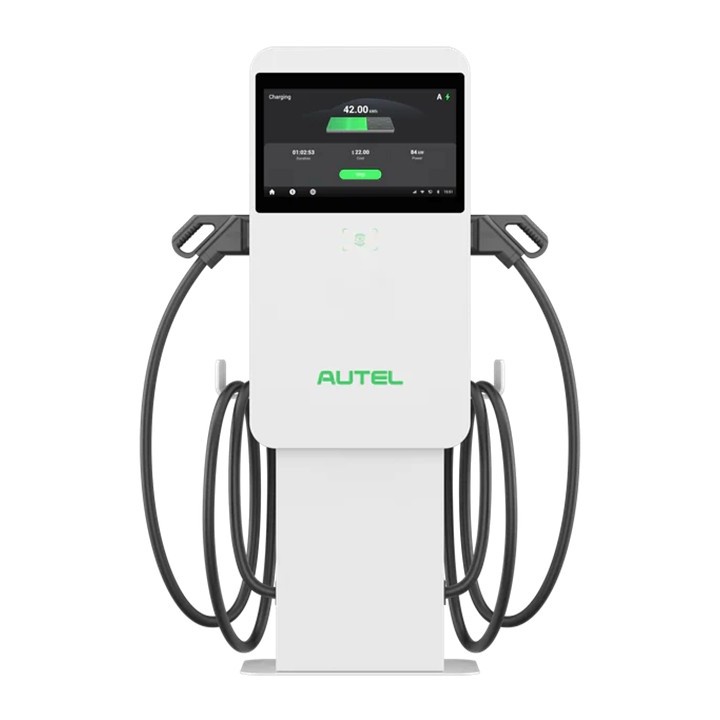

Description
Features
Fast and Effective. Built to increase charging efficiency:
Dual-ports provide up to 47kW of power
Charge 2 vehicles simultaneously
A 30 min charge equates to 130 km of range
Compact Design. Optimized for any location:
Ultra-compact with big DC power in a small package
Flexible installation allows for fixed or mobile positioning
DC Compact has low installation costs, meaning a faster ROI due to reduced capital expenditures for the site operator.
Smart Advertising and Communication Platform. Improve your ROI:
User-friendly 21.5-inch LCD touch screen
Powered by smart operating system, Android 10 with enhanced advertising placements
Communicate, promote or attract customers generating new revenue streams
Specifications
Weight: 220kg
Dimensions (H,W,D): 1000mm, 550mm, 265mm
Product Type: DC Charger on pedestal
Colour: White
Charging Mode: Mode 4: CCS2
Cable Length (DC): 5.5M
Connector Type: 2 Type 2 Plugs (CCS2)
Rated Power: 40kW (Max. 47kW)
Max output current: 133 A
Output Voltage: 150 – 950V
Connectivity: WiFi, 4G, Ethernet
Communication protocols: OCPP 1.6J (can be upgraded to 2.0.1 later)
Operating Temperature: -30°C to 55°C
Operating Altitude: 2000m
Storage Temperature: -40°C to 70°C
IP and IK rating: IP54, IK10
Safety Standards: IEC 61851-1 IEC 61851-23 IEC 61851-21-2 ISO 15118
Warranty: 24 months
