Description
5‑Year Warranty (at installation): 5‑year warranty guarantee from installation.
Dual OCPP Connectivity: Supports a duo OCPP connection, enabling more flexible backend connectivity for monitoring and platform requirements.
Connectivity Options by Variant for Cost Effective Project Requirement: Clear variant structure for WiFi only or 4G required site settings, fulfill your project need without spending too much.
User Interface & Control
- User Interface: LED Indicators
- Authentication Methods: RFID
- Connectivity: Wi-Fi, Bluetooth & RS485,
- Communication Protocols: OCPP 1.6J & OCPP 2.0.1
Mechanical & Environmental Specs

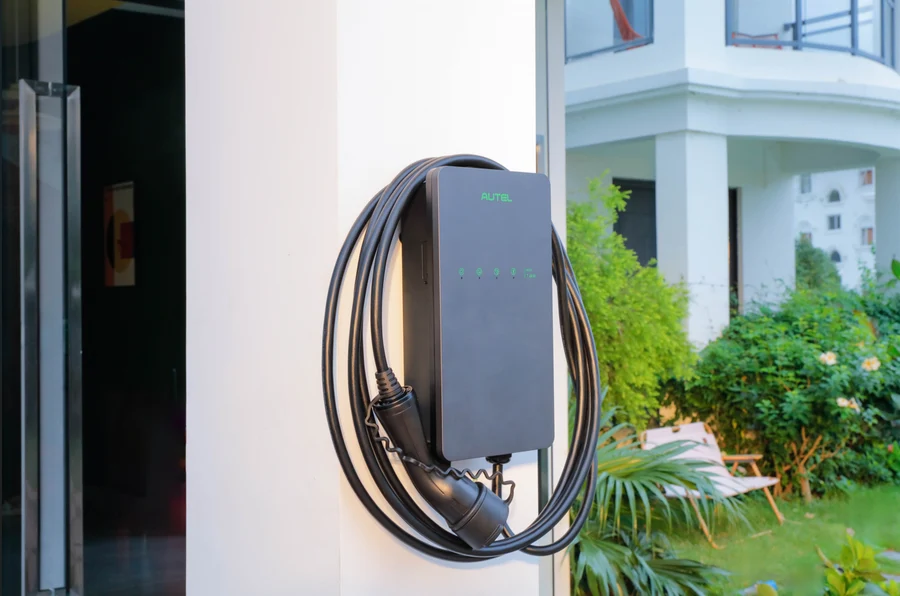

- Mounting: Wall-mounted or floor-mounted with pedestal
- Dimensions (H×W×D): 315 × 170 × 117 mm
- Weight: 6.3kg
- Enclosure Rating: IP65 (charger body), IP54 (socket & shutter versions), IK10
- Installation: Indoor or outdoor
- Operating Temperature: -30°C to +50°C
- Storage Temperature: -40°C to +70°C
- Operating Humidity: <95%, non-condensing
- Operating Altitude: ≤2000 m
- Ambient Light Sensor: Yes
Electrical Specifications (7.4kW Single-Phase)
- Rated Output Power: Up to 7.4 kW
- Input Voltage: 230V ±15%, single‑phase, 50/60 Hz
- Rated Current: Up to 40A
- Circuit Breaker Options: 1P + N + PE
- Network Types: TN, TT, IT
- Input Connection: Hardwired
- Connector Options: 5m tethered cable
Electrical Specifications (22kW Three-Phase)
- Rated Output Power: Up to 22 kW
- Input Voltage: 230V ±15%, three‑phase, 50/60 Hz
- Rated Current: Up to 40A
- Circuit Breaker Options: 3P + N + PE
- Network Types: TN, TT, IT
- Input Connection: Hardwired
- Connector Options: 5m tethered cable
