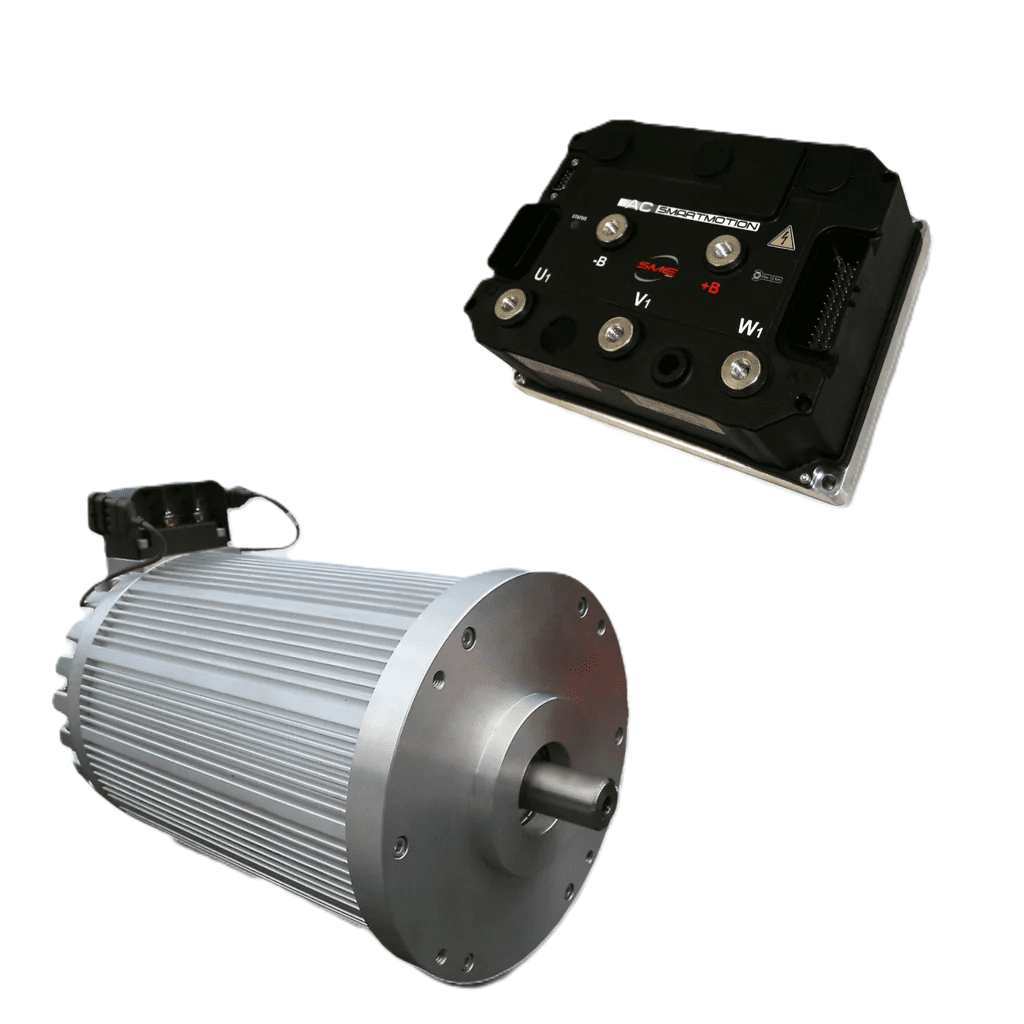

The Hyper 9 Isolated Kit from NetGain is the all-you-need Powertrain Solution for your EV conversion. This kit includes the 100 V Hyper 9 Brushless AC Motor, Hyper-Drive X1 Motor Controller/Inverter, a Low Voltage Wiring Harness Kit, Pre-charge Relay and Main Contactor as well as NetGain’s Programming Software SmartView.
This kit is ideal for any classic conversion e.g., VW Beetle, VW Combi, Citroen 2CV, MG’s, boosting the power to 85 kW and 235 Nm of Torque!
Shipped Direct from the US
5 in stock (can be backordered)
Specification:
• Part Number: SRIPM225-H9X1iso
• Maximum Peak Current: 750 A
• DC Supply Voltage: 62V to 130V
• Includes Accelerator Pedal and Inverter Programming Cable
• Industry leading 3 phase SRIPM (Synchronous Reluctance Internal Permanent Magnet) Motor
| Weight | 75 kg |
|---|---|
| Dimensions | 1000 × 1000 × 400 mm |
