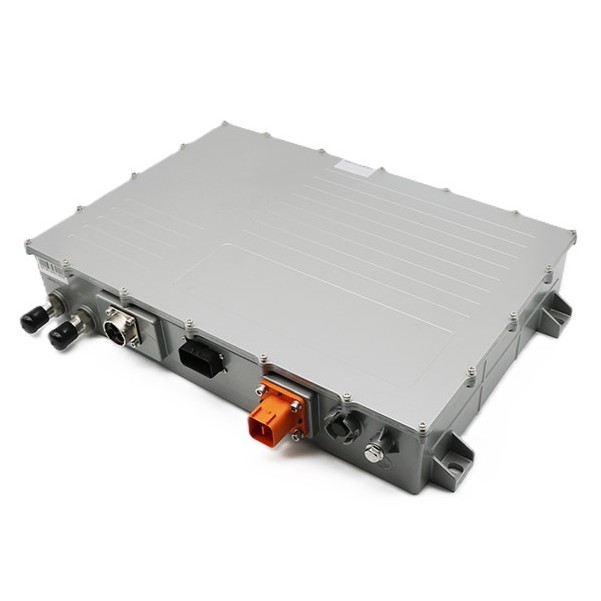

20 kW EV Onboard Charger 400-850 V

$7,250.00 inc. GST

The CTS 20 kW EV Onboard Charger allows for fast charging at high voltage. With waterproof enclosure and liquid cooling, it is perfect for any high voltage EV, ideal for conversions.
With universal AC input, a large range of AC voltage can be used.
Includes Connectors.

Available on back-order

Share
SKU: SKU-obc-22 Categories: , Tags: , , , , , ,

Specifications:
• Model: TR3636
• CAN Communication
• Single Phase:
• Output Current: 0-10 A
• Power: 6.6 kW
• Three Phase:
• Input Voltage: 152-456 VAC
• Output Current: 0-24 A
• Power: 20 kW
• Output voltage: 0-850 VDC
• Weight: 25 kg
• Dimensions: L 550 mm x W 400 mm x H 100 mm

Weight 25 kg
Dimensions 550 × 250 × 120 mm
